First horizontally drilled Electrical Resistance Heating System!
Horizontal Drilling for Electrical Resistance Heating
Aggressive removal of dense non-aqueous liquid (DNAPL) phase tetrachloroethylene (PCE) and trichloroethylene (TCE) under an active manufacturing
facility is the objective of an electrical resistance heating (ERH) system that was installed using horizontal drilling. Placement of electrical resistance heating electrodes within horizontal carbon steel pipe overcame concerns about traditional, vertically installed electrodes at the site:
- Drilling inside of the active facility would generate dust and cause vibration that would interfere with the precision machining and manufacturing work performed in the building,

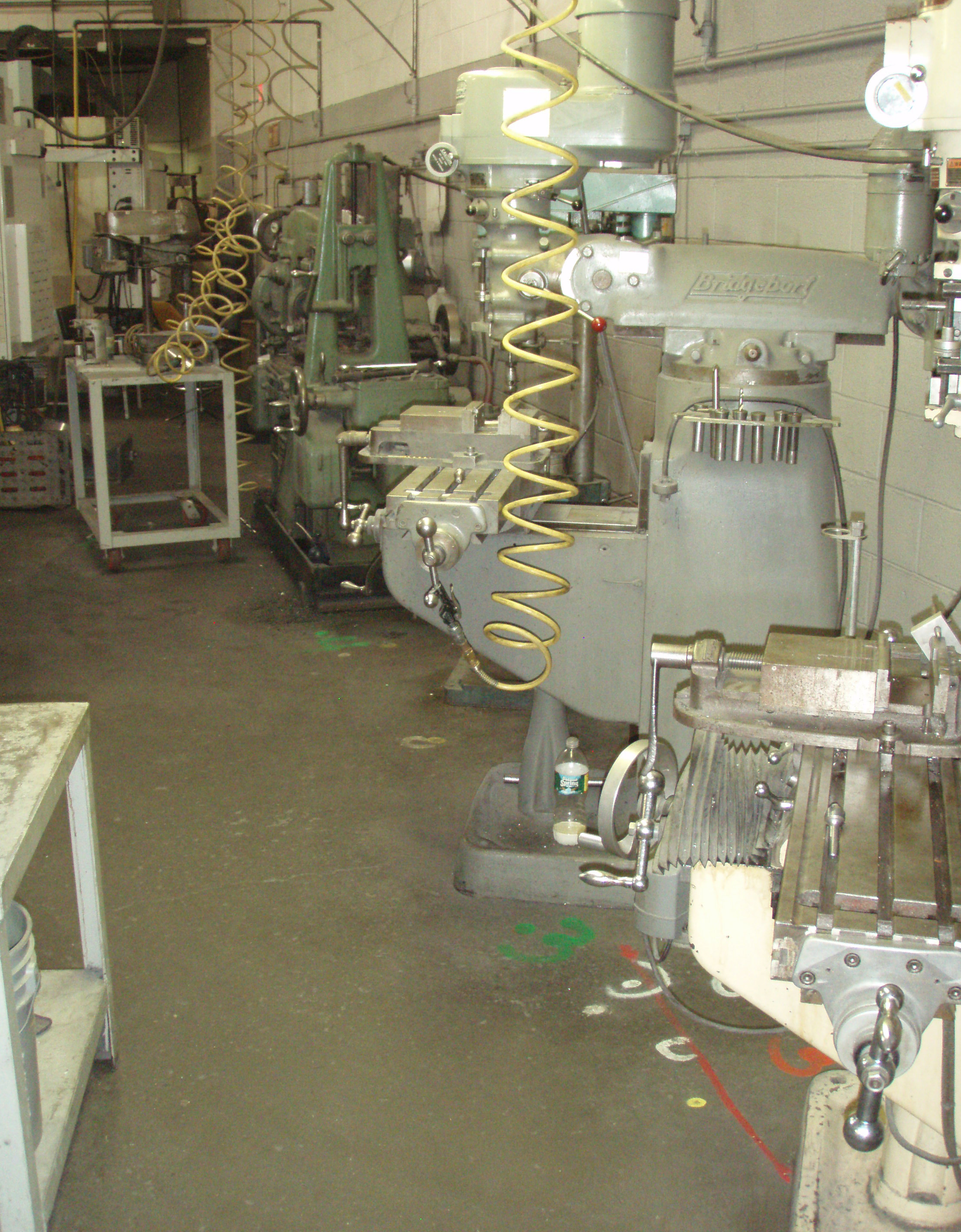

- The labyrinthine distribution of multiple milling machines of many different shapes and sizes would interfere with vertical drilling work to install the ERH electrodes under the building,
- Interruption of the non-stop, 24-hour-a-day production schedule was unacceptable to the owners of the operation, who were not responsible for the plume beneath the building because it emanated from a neighboring former drycleaning facility, and
- A grid of vertical ERH electrodes would severely limit placement options for a horizontal soil vapor extraction (SVE) system that was required in order to prevent vapors generated by the ERH system from entering the indoor air of the manufacturing facility.

Horizontal drilling was used to allow the 24-hour production schedule to continue and to avoid the labyrinthine of milling machines in this active facility.
The Horizontal Solution to ERH Electrode Placement
Electrical resistance heating electrodes are distributed in the subsurface to create a network of triangular electrode groupings in cross section. The purpose of such a configuration is to optimize the distribution of heat across the target zone, from top to bottom. One set of electrodes is placed at a shallow horizon within the target zone, and another set is placed at a deep horizon. Shallow and deep electrodes are staggered, so that they don’t overlie each other.
Vertically the target zone reaches from 2 to 15 feet below ground surface (bgs), but horizontally it spans a 17,000 square foot area of the building. Electrodes are placed at only two different elevations, but multiple electrodes are placed along a given horizontal traverse. Installing electrodes within horizontal casings is therefore much more efficient than installing them in vertical casings. The flexibility of shifting electrodes within a horizontal casing that extends 200 feet across the building is an additional benefit of using horizontal drilling to install the electrodes. This flexibility will allow the electrical resistance heating to be optimized in the course of its operation, as some portions of the target zone remediate more quickly than others.
Hybrid ERH and horizontal SVE Wells
The shallow ERH pipes served double duty as horizontal soil vapor extraction (SVE) wells. Alternating sections of the pipe were slotted for SVE, or solid for ERH. This configuration avoided the logistical problem of threading SVE wells into the network of ERH electrodes.
Horizontal Electrode Pipe Installation
Heavy, rigid black steel casing with 6-inch diameter was used for installing the ERH system. Directional Technologies employed both blind and entry-exit installation methods for the horizontal ERH system. Each black steel casing was welded onto the casing string as it advanced into the wellbore. See the illustration at the top of this article. The shallow wells were only 3 feet below the building slab, so the drilling method was adapted to minimize communication through cracks in the foundation. A grout seal was emplaced around the pipe where it crossed below the building foundation in order to prevent short-circuiting of the horizontal SVE system. Installation of the deep wells 14 feet bgs in weathered sandstone and gravel formation was challenging because of the weight and limited flexibility of the black steel casing. In completing the ERH casing under the manufacturing facility, Directional Technologies Inc. brought to bear its 20 years of experience directionally drilling in every form of soil, sediment or igneous and metamorphic rock.
Round-the-clock site operations using sensitive milling equipment continued unabated by the directional drilling work in yet another example of Directional Technologies’ tradition of partnering with consultants and site owners/operators to ensure successful and unobtrusive remedial system operation.
Contact Directional Technologies, Inc.
Horizontal Directional Drilling Services
Kathy Sequino
ksequino@directionaltech.com
203-294-9200
Posted in Articles & Presentations
Leave a comment
Horizontal Well – Drilling Fluid – Bentonite vs Bio-Polymers
THE “STRAIGHT SKINNY” ON BENTONITE-BASED DRILLING MUDS AND THEIR STANDARD PRACTICE USE IN THE HORIZONTAL WELL INDUSTRY
Let’s make our point up front: 1) bentonite-based drilling fluid is NOT bad for horizontal well projects; 2) it does not damage the formation; 3) it is a naturally occurring clay material that is mined; and 4) it does flush easily/adequately during horizontal well development. Most remediation professionals have designed and/or installed vertical wells at one time or another during their careers. After advancing the boring, setting the screen/riser and sand pack, the vertical driller usually pours dry bentonite chips or pellets into the annular space between the vertical well and formation. The vertical driller then adds water to hydrate the bentonite, creating a very effective seal as the bentonite swells (or “yields”).
Why are we discussing a topic that is common knowledge/practice to most remediation professionals? Because some people who claim to be experts at installing horizontal wells assert that bentonite-based drilling fluids damage the formation and cannot be adequately flushed from the annular space during development. These are false assertions that distort what actually happens when bentonite-based drilling fluid is used. These false assertions feed off of most remediation professional’s real-world experience when dry bentonite is intentionally hydrated in situ to create a seal in a vertical monitoring well. In other words, an attempt is being made to make you think that because straight bentonite hydrated in situ makes a great seal, it does the same thing when used in a drilling fluid when installing a horizontal well.
The argument turns on the fact that: 1)bentonite-based drilling fluid is hydrated ex situ and yields prior to commencing directional drilling; and 2) bentonite is a component of the directional drilling mud system, not the sole component.

Horizontal Well mud pit
A “seal” is never formed by bentonite in a horizontal well and in addition Directional Technologies, Inc. uses a proprietary process to develop the horizontal wells based on years of field experience in the oil field, the utility industry and the environmental industry. This development process results in fully functional horizontal wells.
The same horizontal remediation well professionals that criticize bentonite-based drilling mud also advocate the use of “bio-polymer” drilling muds. These are manmade products based on gaur gums and vegetable products that biodegrade after use to various types of sugars that purportedly “jump start” the bioremediation process by supplying nutrients to naturally occurring bacteria. The problem with this is that the sugars tend to enhance undesirable bacteria that can create slime that damages the formation.
Directional Technologies, Inc. develops and formulates-specific drilling fluid programs for each horizontal remediation well we install. We do not use a one-dimensional, “one-size-fits-all” drilling program. There is both a science and an art to creating the optimal drilling fluid program for each horizontal well installation. It is imperative that the selected directional drilling fluid(s) build the bore path to: 1) prevent formation damage; 2) enable safe cost efficient directional drilling/horizontal well installation; and 3) prevent bio-fouling.
Stay tuned for additional technical communications regarding the horizontal well installation process or contact us at 1-877-788-4HRW or drilling@directionaltech.com to further discuss your possible horizontal remediation system.
Posted in Articles & Presentations
Leave a comment
Remembering 9/11: Directional Technologies Aided in World Trade Center Rescue Effort
On Sept. 13th 2001, Kathy Sequino’s telephone rang. It was the New York Department of transportation.
The man on the line had just found Directional Technologies Inc.’s business card ad in the back of Trenchless Technology and he was wondering if Sequino could answer a few questions. He wanted to know if it was technically feasible to drill into the subbasement of the World Trade Center (WTC) using directional drilling technology. He wanted to know if they could bore through concrete walls and tons of steel super structure on the chance that they might locate trapped survivors. He wanted to know if Sequino would help.
The president and owner of Directional Technologies hung up the phone. She conferred with her husband, Mike Sequino, and a few hours later he headed for New York City, 90 miles away.
It had only been two days since hi-jacked airliners full of innocent passengers, had decimated the two WTC towers, symbols of the financial prowess of the Unites States. While most of America, still shell shocked, huddled around televisions waiting for the next bits of news, New York City was busy assembling a elephantine rescue effort for the thousands of missing people.
Directional Technologies was enlisted to help, but the company wasn’t alone. Police, fire and medical personnel along with countless engineers, demolition experts and soldiers were already scouring streets and giving the city support. Amongst these operations, the N.Y. DOT was working on a plan to use a directional drill to burrow through WTC debris in order to insert television inspection cameras and look for victims.

"Directional Technologies, Inc. at World Trade Center ground zero on September 11th, 2001
Directional Technologies received support from oil field companies like Schlumberger Oilfield Services, Baker Oil Tools, Houston, Geological Boring, Tacoma, Wash., Frank’s Casing Crew and Rental Tools, Lafayette, La., and television inspect companies like Underground Video, Hillsdale, N.J., Downhole Video, Oklahoma City, Hit Well, Lexington Ky., and CUES, Orlando, FLA. Also helping, companies like UEMSI, Northbrook, Ill., donated television inspection cameras for the rescue effort. Sequino reached New York City that same Thursday night. The surrounding buildings around Ground Zero were still collapsing and crews were unable to get close enough to start the operation.
“It got so chaotic. The first night One Liberty Plaza was still unstable,” said Mike Sequino, “They thought the building was coming down. We didn’t even get to talk to anyone Thursday. The rescue team had to worry about building facades falling. They had to worry about buildings falling.”
Rescue efforts continued Friday and Saturday near Ground Zero, but without much success. The team spoke with fire chiefs as workers removed rubble; then crew was looking for a spot close enough to use the drill. By early Monday morning, around 2:30 early Monday morning, around 2:30 a.m. enough debris has been cleared where a target point was being considered, that target point was the remaining portion of the stairwell in Tower One. The Fire Department of New York Believed according to Sequino that a good portion of the people trying to escaper trying to exit from this location.
“They wanted to get into the stairwell and the only want to do that was to drill through the steel of the super structure. This would require different drilling bits,” explained Mike Sequino. “Digital pictures were sent from Ground Zero to Baker Oil Tools to determine the right drill bit and Ditch Witch quickly made an attachment piece to fit the drill string.” But the debris shifted again and the conditions were simply too unstable to drill though the rubble. Monday and Tuesday, the city re-evaluate its approach. Port Authority engineers and the crew discussed drilling into the mall under the WTC while in the nearby Customs Building, but the building was again too unstable; the noise and vibration might have caused it to collapse. Unfortunately, five days of hope and expectations led to disappointment and a long trip back home.
“We spend five days down there and our guys were burned out, “said Mike Sequino, “Everyone was ready to put anything we needed at our disposal. And that was the one thing that underscored everything. Everyone did everything humanly possible to find any survivors. Firemen, policemen, people from FEMA, everyone risked their lives mulling through the rubble looking for people.”
- Written by Keith Gribbins – TRENCHLESS TECHNOLOGY October 2001

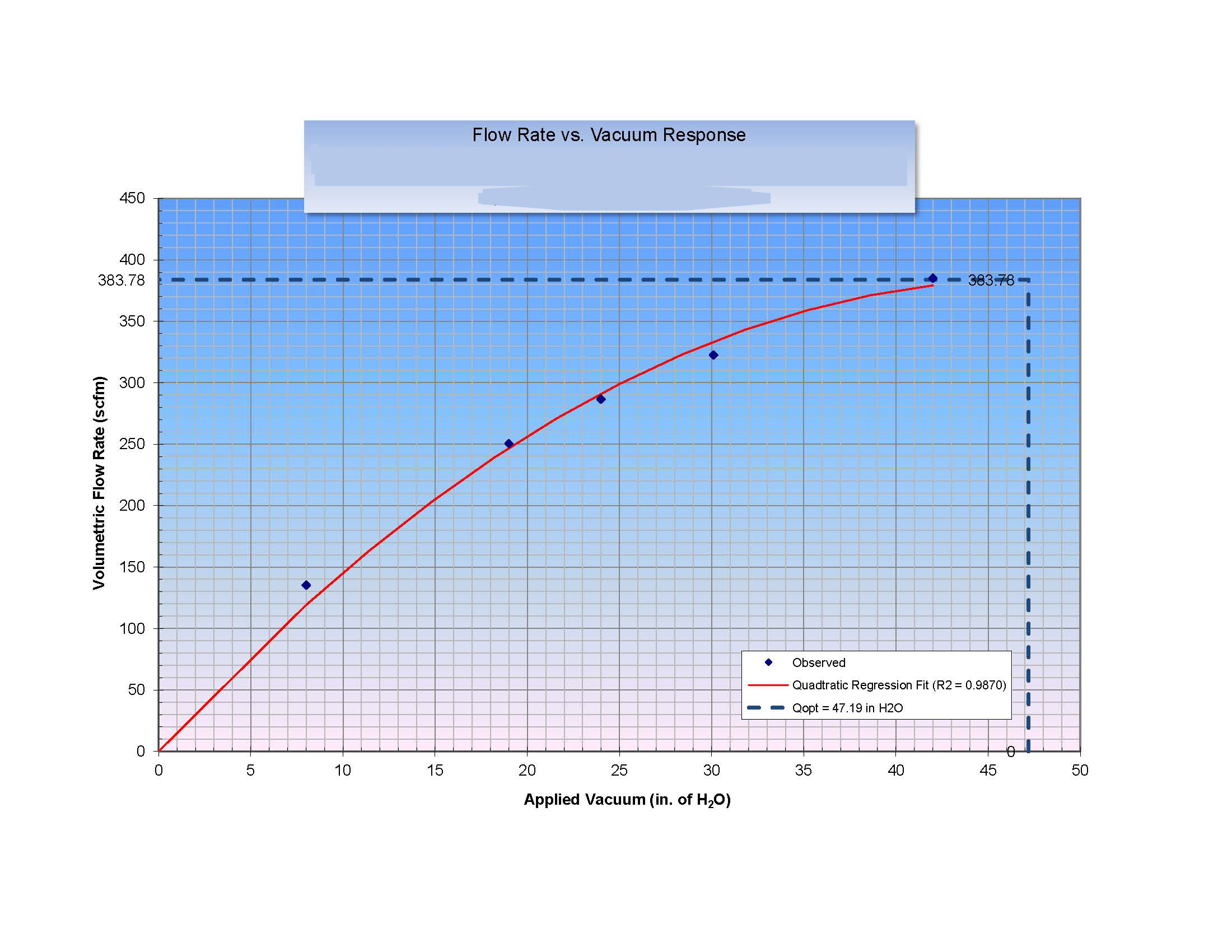

Horizontal Soil Vapor Extraction
Horizontal Soil Vapor Extraction and Horizontal Air Sparge Well Case Study.
Installation to remediated site closure.
Horizontal Wells allow Rapid Clean-up of R&D Facility Gasoline Release
Background A Research and Development facility in central New Jersey released several thousand gallons of gasoline to the subsurface. Environmental investigations revealed that approximately 80% of the phase separated plume existed below the building. Uninterrupted operation and prevention of vapor intrusion in the facility were key factors that dictated an alternative approach to the remedial strategy. Hudson Environmental Services, Inc. of Matawan, New Jersey completed the remedial investigation, assessed remedial alternatives and proposed a remedy. Horizontal air sparge (AS) and horizontal soil vapor extraction (SVE) with vapor treatment utilizing catalytic oxidation was the recommended and selected remedy.
The Challenge Presented Two technical approaches were available for the horizontal air sparge (AS) and horizontal soil vapor extraction (SVE) system orientation: install a series of multiple vertical wells (a number would be required inside the building) with an interconnecting subsurface piping network, or install three horizontal wells, which would pass beneath the building. Feasibility and financial analyses indicated that the horizontal well system would not disrupt business operations, be less expensive and more efficient than the traditional vertical well approach. Directional Technologies, Inc. was engaged to install the horizontal wells.
Directional Technologies at Work: Our Solution Pilot testing and subsurface characterization provided data enabling Directional Technologies to design two horizontal air sparge wells and one horizontal soil vapor extraction well. The horizontal air sparge and horizontal soil vapor extraction wells were designed to operate at 250 cubic feet per minute (CFM). The system design included a catalytic oxidizer to destroy hydrocarbon vapors extracted from the horizontal soil vapor extraction well.
The NJ Department of Environmental Protection (NJDEP) approved the remedial design following the first design submittal. Underground utilities, building footings and other subsurface structures were identified and surficially marked out prior to well installation. Directional Technologies designed the horizontal well trajectories to avoid these buried structures.

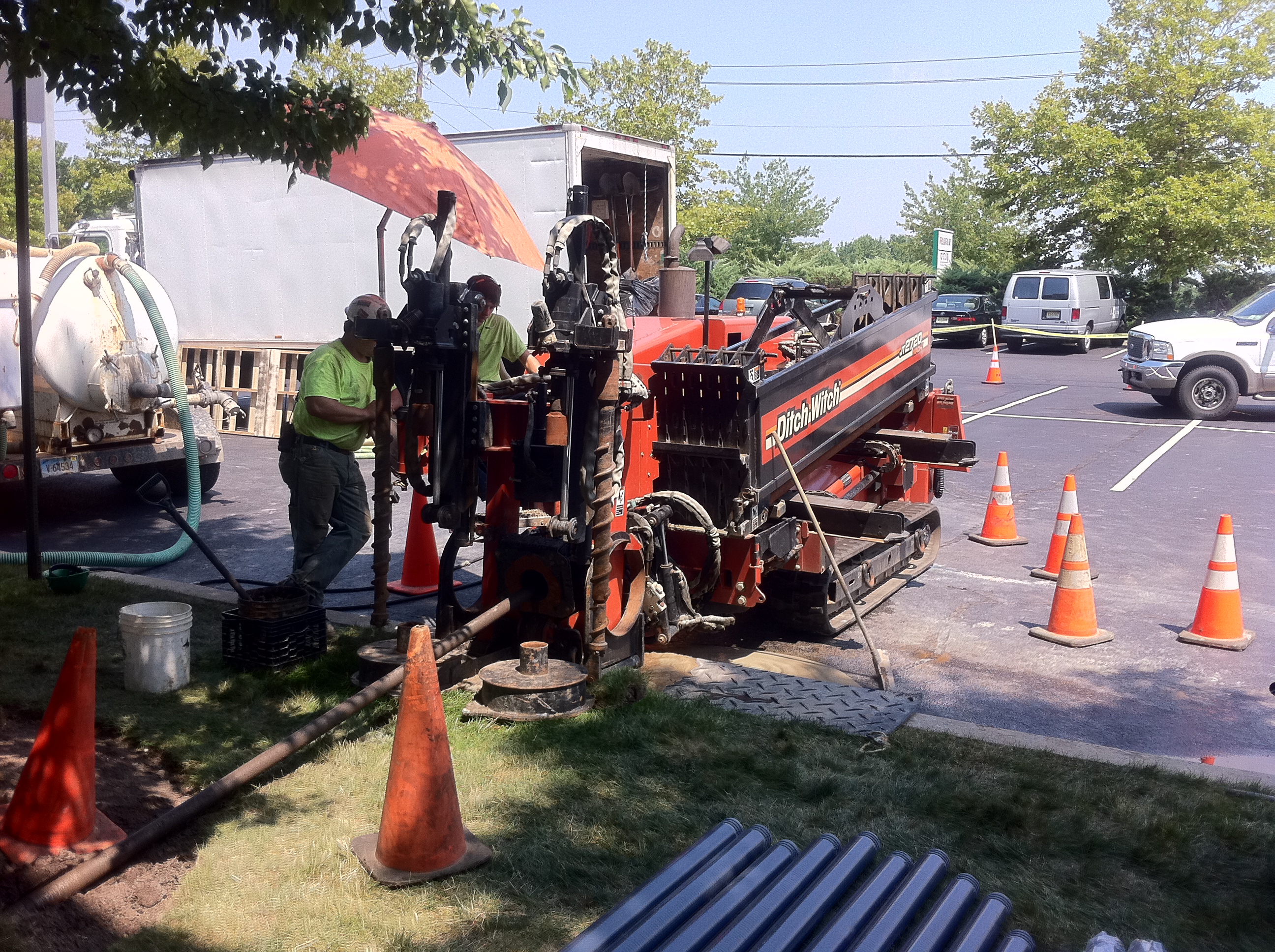

Directional Technologies used a Ditch Witch Directional Boring System to directionally drill the horizontal wells and has used this drill rig to successfully drill bores up to 12 inches in diameter and 700 feet long; while compact in size, it is extremely powerful. The directional drill rig’s compact size allows it to be used in relatively confined areas and the rubber tracks exert minimal ground pressure, minimizing risk of damage to pavement and turf. The power and two speed spindle rotation capability enabled the rig to successfully penetrate both hard and soft soil conditions encountered at the site (fine sands, silts and clays).
Directional Technologies advanced each pilot hole to the specified depth and horizontal termination point using a spade bit. Drill bit X-and-Y axis directional control and operational temperature was provided by a hand-held surface walk-over radio detection instrument. The instrument receives continuous radio signals from a battery-powered instrumentation module contained in a length of drill pipe located directly behind the drill bit. Regularly measuring drill bit temperature is important to ensure that drilling fluids are circulating through the drill bit, especially when drilling in rock. Directional Technologies enlarged each pilot hole to a diameter of 6.5 inches using a spiral-cutting-configured back reamer drill bit designed to minimize formation displacement and compaction. Cement grout pumped through tremie pipes formed a seal in the annular space between the riser and formation.
Directional Technologies developed the horizontal wells with water and a proprietary additive to flush out drilling fluid that may have entered the formation during the horizontal drilling process. Directional Technologies installed two identical horizontal air sparge wells configured as follows: 4 inch diameter, riser length: over 500 feet, screened interval: 260 feet, installed depth: 22 feet below ground surface, 7-9 feet into the water table. The single horizontal soil vapor extraction well was configured and installed as follows: 4 inch diameter, riser length: over 480 feet, screened interval: 240 feet, installed depth: 8 feet below ground surface (5-7 feet above the water table).
The horizontal wells were constructed of SDR-11, a high density polyethylene (HDPE) product; Directional Technologies validated the choice of this choice product via detailed computer modeling. Modeling further dictated the need for multiple slot-zones in the horizontal soil vapor extraction well screen due to the multiple design goals of uniform air sparging and extraction and a flow rate of 250 CFM to the catalytic thermal oxidizer.
Results that Reward The time required to achieve site remediation can be conservatively calculated from the quantity of oxygen delivered to the site by the remediation system. Directional Technologies designed/installed each horizontal air sparge well to deliver approximately 2 pounds per minute of oxygen to the subsurface, or a total of 4 pounds per minute. At this oxygen delivery rate Directional Technologies estimated that site cleanup would be accomplished in approximately one year. The horizontal air sparge and horizontal soil vapor extraction system operated from March 1999 to October 2000 and removed approximately 17,000 pounds of gasoline. The separate phase gasoline plume under the building was completely eliminated. This resulted in the NJDEP approving” no further action” for soils.
Contact Directional Technologies, Inc.
Horizontal Directional Drilling Services
Kathy Sequino
ksequino@directionaltech.com
203-294-9200
Benefits Of Horizontal Wells
BARRIER AIR SPARGING
Why Air Sparging?
Quick Refresher: air sparging (AS) is a proven groundwater remediation technique that removes volatile organic compounds (VOCs) from groundwater by injecting air into water-saturated formations. There are two common approaches to AS. The first involves injecting air through wells into the impacted area to remediate the plume. The second creates a transport barrier by sparging downstream from the impacted zone, VOCs are removed as the groundwater passes through the sparge barrier and aeration enhances natural attenuation.
How are Barrier Air Sparge Systems Usually Installed?
There are three principal methods: vertical wells, horizontal wells and horizontal trenches.
How Do Vertical Wells and Horizontal Trenches Fall Short? One must ensure there is appropriate overlap to account for radius of influence (ROI) limits with a vertical well network to avoid breakthrough. Vertical well networks require interconnecting piping which can be costly to install and cause expensive business interruptions in commercial areas. There are practical limits to the number of vertical wells that can be networked due to piping friction losses and blower sizing requirements. Horizontal trenches involve depth limitations related to readily available excavation equipment and the potential for expensive business interruptions.
Horizontal AS wells typically have 20-40' perpendicular ROI on each side of the well screen.
1,000 foot AS Barrier well
installed at a depth of 23'
to protect Lake Michigan.
HRW directionally drilled by
Directional Technologies, Inc.
How Can Horizontal Wells Enhance The Barrier Sparging Process?
Horizontal wells typically have a robust radius of influence if properly designed. Directional Technologies uses a proprietary screen design methodology to ensure uniform air flow across the screen length. Horizontal wells can be designed to effectively protect extensive areas. For example, Directional Technologies recently installed a 1,000-foot long horizontal well to serve as an AS barrier at a site adjacent to Lake Michigan in Waukegan, IL. Horizontal wells do not involve complicated interconnecting piping networks – connect your surface equipment at one location. In addition, horizontal wells can be “stacked”, if required, to provide a deeper barrier. In other words, two horizontal wells could be installed one on top of the other (appropriately spaced to ensure overlapping ROI) from essentially one drilling location. Finally, horizontal wells can be configured to avoid expensive business disruptions in commercial locations typically associated with vertical technologies.
Directional Technologies Installs Horizontal Wells!
Directional Technologies has been successfully installing horizontal wells since 1984! The companies' experience in the oil field, environmental remediation industry and utility industry allows us to complete projects that were previously considered unfeasible. Give us a call to discuss your next AS system project.
For additional information
contact Kathy Sequino
203-294-9200
Directional Technologies, Inc. conducts unique horizontal remediation well installation in Railroad Yard
Background
The Long Island Rail Road (LIRR) Morris Park Yard, located at the Intersection of Atlantic Avenue and 121st Street in Queens, New York, is a historic rail yard with one of the few remaining operational turntables in the USA. The Morris Park Yard has been used to repair and refuel locomotives for over 100 years and continues to serve one of the nation’s busiest regional rail lines. Locomotive refueling operations over many decades resulted in significant subsurface petroleum hydrocarbon releases.
The Challenge Presented
On behalf of LIRR, Franklin Environmental developed a remediation plan to address subsurface non-aqueous phase petroleum hydrocarbons, in compliance with regulatory requirements. LIRR selected in situ bioremediation as the remedy for the hydrocarbons located at and above the water table. Bioamendment fluid was to be introduced into the subsurface by some means that allowed infiltration into the hydrocarbon-impacted vadose zone. The area requiring remediation was covered with a dense network of railroad tracks and the hydrocarbon target depth was less than four feet below ground surface. The narrow corridors between railroad tracks did not allow installation of vertical injection wells and interconnecting piping.
Directional Technologies, Inc. (DTI) met with LIRR officials and Franklin environmental professionals to discuss the project. Neither Franklin nor LIRR had any prior experience with directional drilling technology and its capabilities. DTI was challenged with: 1) convincing an unsure client that we could safely and successfully execute the program via directional drilling methods; and 2) installing the horizontal remediation well network without disrupting the busy rail yard.
Directional Technologies at Work: Our Solution
LIRR engaged DTI to design and install 17 entry/exit horizontal wells for Bioamendment injection and 10 utility conduit crossings under the busy tracks in the rail yard. Our team designed the wells to inject high-viscosity Bioamendment solution uniformly along the length of the well screens to saturate the vadose zone soils above and below the screen horizon.
DTI initially set up its drilling equipment near the location where a new remediation system equipment building was being constructed and advanced an array of well and conduit bores from that location.
As the drilling program progressed, our client: 1) quickly learned about the many unique capabilities of directional drilling technology, such as the ability to “steer” the drill bit in the vertical and horizontal axis and accurately measure/detect bit location 2) saw that the borings were being successfully and safely installed without interrupting rail yard operation; and 3) soon became convinced that they had made the right decision to engage DTI for this very challenging assignment.
The horizontal wells passed beneath multiple busy railroad tracks where locomotives were fueled and serviced. The bore paths were carefully installed using subsurface steering-while-drilling techniques to avoid underground water, sewer, power, communications, and gas lines at depths very close to the bore paths. As the bore holes were advanced at Bioamendment injection targets depths, it was necessary to increase the borehole depths beneath track sections to meet LIRR geotechnical track protection standards. This procedure produced undulating bore paths that required precise directional drilling control to install the horizontal wells correctly. Complex intersecting utilities at several locations exercised DTI’s proven ability to successfully combine subsurface directional drilling with surficial trenching to complete the bore paths.
DTI’s drilling schedules was closely coordinated with railroad operational schedules, allowing locomotive engine repair and refueling operations to continue uninterrupted during the six-week well installation program. DTI deployed its equipment in the narrow between-track corridors such that drilling operations were safely executed even as locomotives passed nearby.
Results that Reward
DTI safely completed this challenging assignment on schedule without interrupting the busy rail yard.
Horizontal Air Sparge Wells Solve Access Limitations Beneath Air Field Tarmac
Air Force Base tarmac is a double-edged sword with respect to environmental remediation. Concrete thicker than at commercial airports virtually eliminates infiltration and limits migration of jet fuel constituents in groundwater, but source material in the vadose zone remains indefinitely, extending the life of the groundwater plume. Horizontal air sparge wells are an effective means of addressing both saturated and unsaturated hydrocarbons beneath airport or air field tarmac, but they cannot be installed unless the drilling contractor can overcome a barrage of challenges, including:
- Flight line traffic and work restrictions,
- Limited site access to work areas, and inability to place and operate drilling equipment on the tarmac,
- Aircraft noise,
- Signal interference to the drill head locating system caused by tarmac concrete and subsurface utility banks, allowing only highly trained and experienced horizontal well drilling specialists to keep the wellbore on target,
- Frequent interruption of the work schedule to accommodate aircraft, and
- Strict adherence to workday schedules.
Directional Technologies, Inc. successfully overcame all of these challenges while installing four horizontal air sparge wells at an Air Force facility in the southeastern United States. The wells fan out over a span of about 120 degrees from a central drilling rig area, so the wells were like spokes of a wheel. Each well placed 150 feet of screen at 25 feet below the tarmac surface. The wells were drilled without exit points, and the tarmac remained free of excavation or any other invasive drilling-related activity. The tarmac was accessible for short periods of time for surveying purposes, and Directional Technologies developed a drilling program that accommodated limited, controlled access along most of the drill path. In spite of these limitations, the client received detailed as-built diagrams of the well paths and profiles.
Local hydrogeology added to the challenges met by the Directional Technologies’ experienced drilling team. Heaving sands along portions of the well paths caused differential sticking of the drill string and well casing during drilling and installation. The drilling team resolved the problem efficiently by adjusting the drilling fluid program and completion method.
All four wells were completed with 3-inch schedule 10s slotted stainless steel screen. The screens were slotted longitudinally, with slots parallel to the axis of the pipe. Longitudinal slots were chosen to maximize pipe strength and air flow distribution. The slots were 0.011 wide, providing filtration control for the fine to medium sand in the target zone.
Radial Horizontal Well System Targets Specific LNAPL Viscosities in Multiple Product Plume

Directional drilling rig tucked in corner while normal business activities continue
Since the wells were drilled blind, there was no need to exit at ground surface at the far end of the wells. Instead, each well terminated in the target zone at the distal endpoint of the well screen, eliminating unnecessary drilling and surface construction.
The wells were completed with 6-inch, schedule 80 PVC pipe, with conventional slots appropriate for LNAPL recovery. Each well was equipped with a down-hole pump that can easily be moved to the optimal location for efficient LNAPL recovery. The ability to adjust the pump location along the horizontal screen allows continuous optimization of recovery in response to changing positions of the multiple LNAPL phases with contrasting viscosities. This flexibility avoids or greatly delays the need for installing new well points that are often required in vertical LNAPL recovery well fields as the LNAPL distribution changes.
Directional Technologies, Inc. (DTI) installed the 6 wells, with over 200 feet total of screen, in less than two weeks. Forklifts moved unimpeded during those two weeks, allowing the shipping department to continue business as usual. Operation and maintenance of the LNAPL recovery system will likewise not impede operations at the paint facility. The centralized location of surface equipment in the underground tank at the center of the “wheel” of horizontal recovery wells will cut the time required for O&M activities to a fraction of what would have been required for an equivalent vertical well LNAPL recovery system dispersed within the building.
DTI Installs 3 Blind Horizontal Remediation Wells in Cobble
The Issue
An active retail gas station next to a wetland area has benzene and trimethylbenzene plumes in a water table aquifer containing sand, gravel and cobbles. Rock fragments and boulders several feet in diameter lie in the vadose zone, between the ground surface and the water table. Business at the gas station would slow down or stop for an extended period of time if a vertical air sparge and soil vapor extraction wells had to be drilled through the rock because the wells would surround the pump island, block the driveways, and even interfere with access to the store itself. The vertical wells would have to be closely spaced because of their limited zone of influence.
The Solution
As a national directional driller based in New England, Directional Technologies, Inc. has the experience to complete projects that may confound other companies. New England is known for its tough subsurface conditions and the company has been installing conduits and horizontal wells in gravel, cobbles and rock since 1992. Directional Technologies installed three blind wells—two air sparge wells and one soil vapor extraction well under the pump island, driveways, and even under the retail store—within a week. Blind wells have only one wellhead, avoiding the need to exit through the wetland area, and limiting the amount of drilling through boulders in the vadose zone to three riser sections (one for each well). Cars pumped gas while the directional wellbore was advancing beneath the pump island and driveways.
Customers roamed the store aisles and paid at the cash register even as the drillers were locating the advancing drill bit 20 feet beneath the floor. The project was completed on time and without a change order request, despite the need to adjust well entry points, paths, screen depths, and completion details.
The Technology
Directional Technologies brought a variety of excavation and drilling equipment to the site to be prepared for any obstacles to drilling. Limited excavation around the wellheads allowed the driller to coax the drill rod through the rock-strewn vadose zone layers. The well screens were drilled beneath the layer of boulders, and the specialized drill bit navigated through cobbles and rock fragments in the target zone. Placement accuracy was achieved with the use of a walkover locating device which allowed the experienced operators to narrow down the location of the drill bit in the midst of interfering subsurface utilities, tanks, and the foundations and flooring of the retail store. Directional Technologies customizes the drilling fluid for subsurface conditions at every job site. The wellbore remained stable during drilling and reaming through the cobbles and rock fragments, and Directional Technologies successfully installed up to 230 feet of completion pipe in each of the three blind horizontal wells.
Plume Control under a City Building – Vapor Intrusion Mitigation

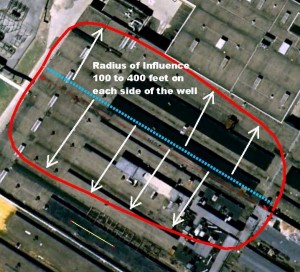

Subsurface remediation in a big city setting is complicated. Limited work space, heavy traffic, noise restrictions, and a dense network of utilities are just some of the factors that conspire to make the installation of any in situ plume control or plume reduction system a seemingly unsolvable logistical puzzle. Horizontal wells placed directly beneath a building can provide protection from soil and groundwater sources of vapor intrusion, and are more effective for plume remediation than wells that are placed down-gradient or up-gradient of the plume just to avoid having to drill wells inside the building.
Directional Technologies, Inc. has mastered this puzzle over many years’ experience working in big cities in the northeast and throughout the USA. An example of this is in New York City, near the boundary between Yonkers and the Bronx, where a former paint plant leaked mineral spirits into soil beneath a building that is currently used by ExtraSpace for public storage. Besides being under a large portion of the building, the groundwater plume extended outside, under a railroad track, and entered a nearby stream.
A combined SVE and groundwater extraction system was installed using three horizontal wells: one SVE well and one groundwater extraction well under the building, and one groundwater extraction well outside the building, along the railroad track. Directional Technologies, Inc. completed all three wells with four-inch stainless steel wire-wrapped
screen. The wells under the building have 50-foot long screens, and the well along the railroad track has a 100-foot long screen. All three are “blind” wells, with riser extending from only one end of the screen section, while the other end of the screen terminates under ground.
Directional Technologies, Inc., is an industry leader in the installation of blind wells. The soil vapor and groundwater extraction wells under the building are 5 and 22 feet deep, respectively. The wells have 50-foot long risers, demonstrating Directional Technology, Inc.’s expertise in minimizing riser length, which was crucial at this site because the wellheads needed to be inside the building. The outside well has a 170-foot long riser in order to accommodate both screen placement and wellhead location requirements.
The wells have performed to the satisfaction of the site owner and New York State Department of Environmental Conservation. The SVE well developed a symmetrical zone of influence extending at least 50 feet away from the well. The groundwater extraction well under the building depressed the water table beneath the building, creating a trough of depression that increased the distance between the water table and the building slab. The well outside the building provides hydraulic control, preventing impact to the nearby stream.
